Schmidt Rebound Hammers

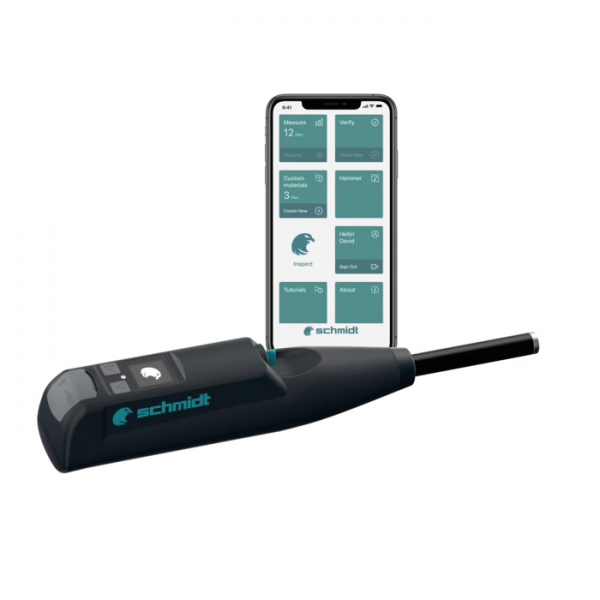

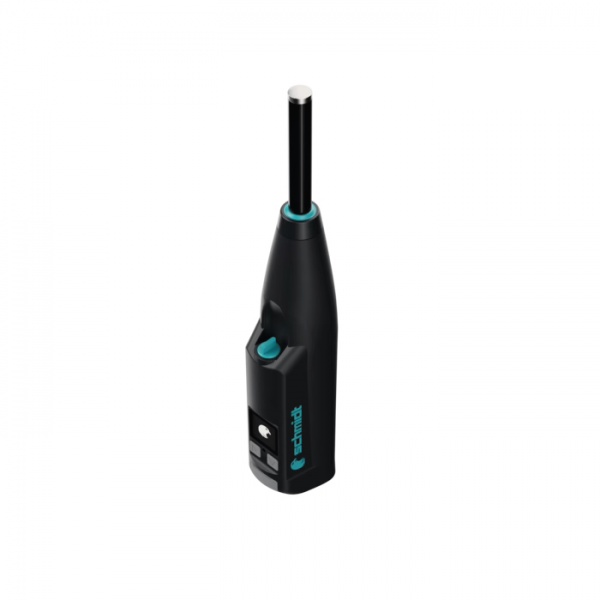

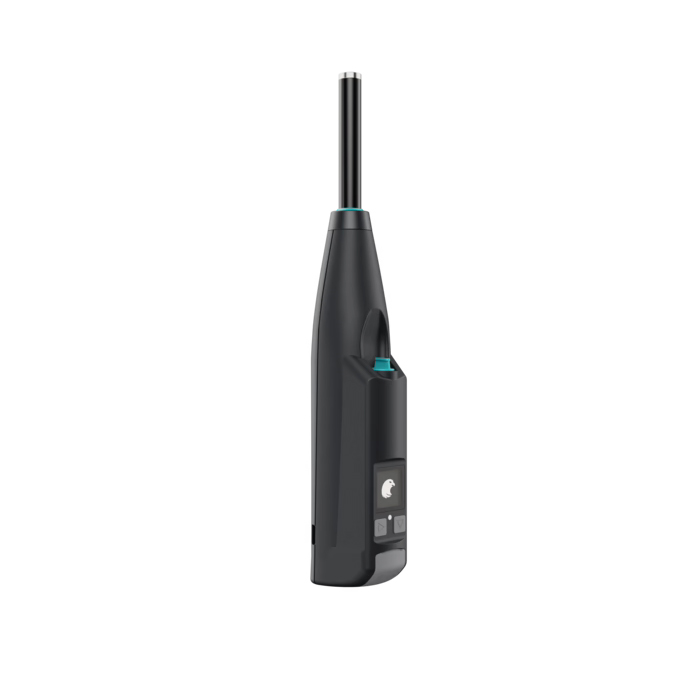

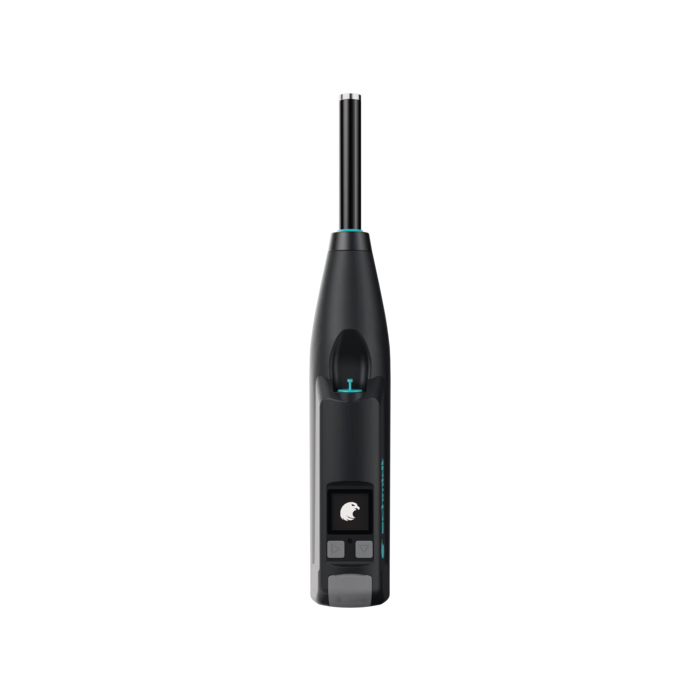

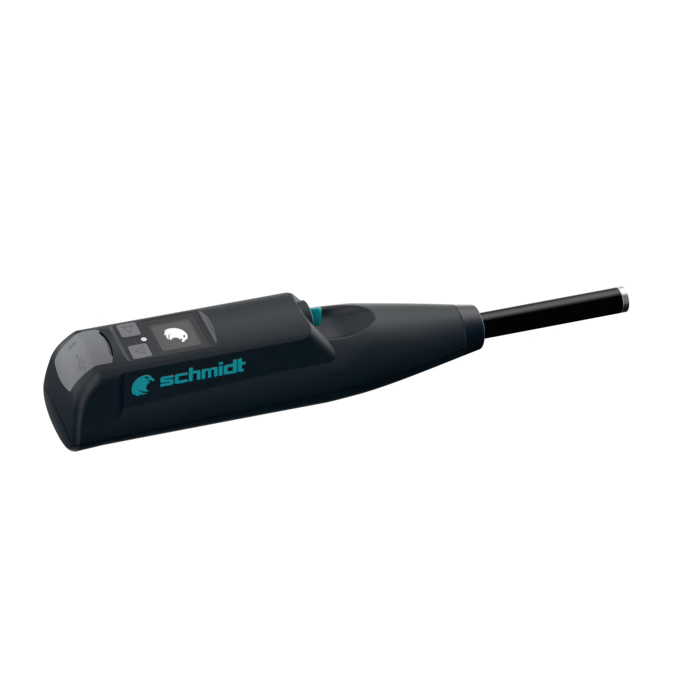

Silver Schmidt OS8200

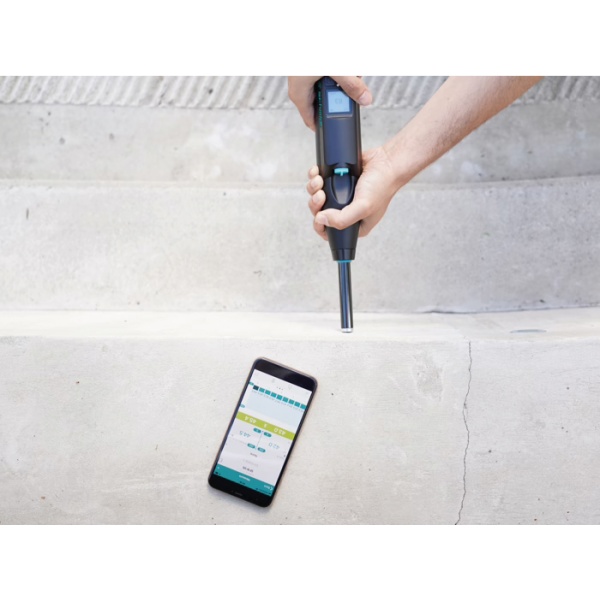

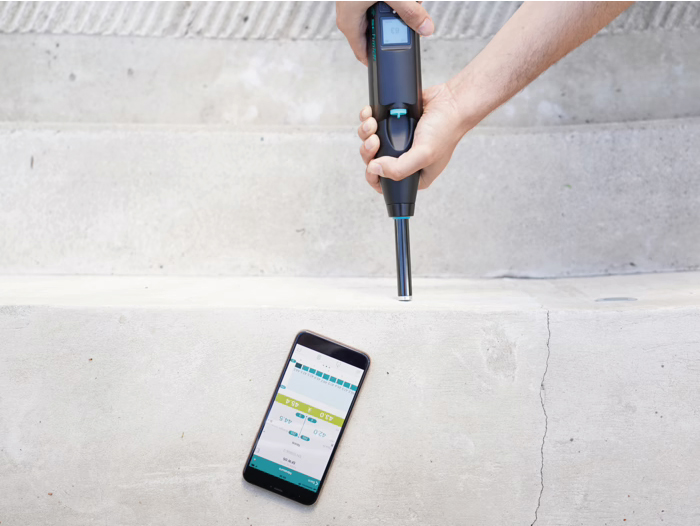

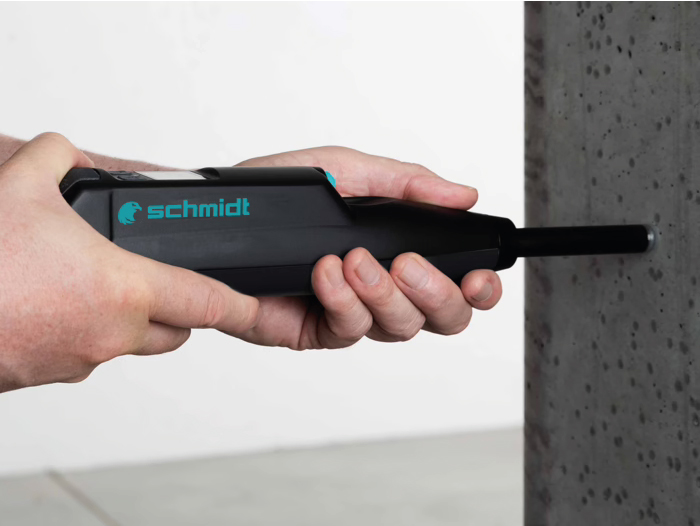

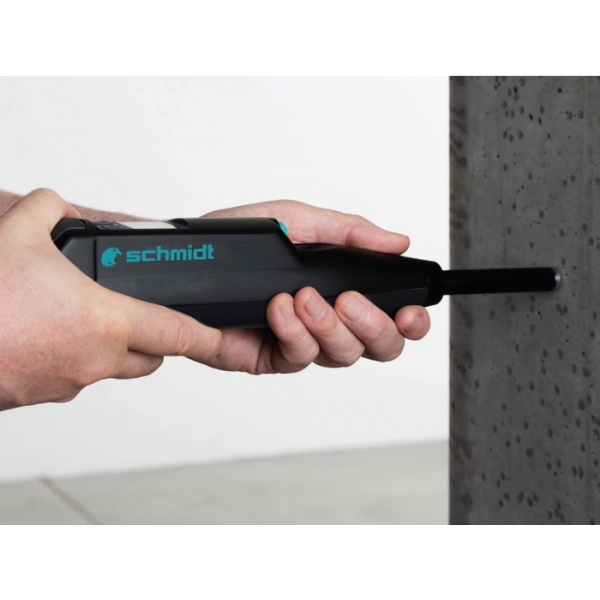

Concrete strength and uniformity testing using rebound hammer technology

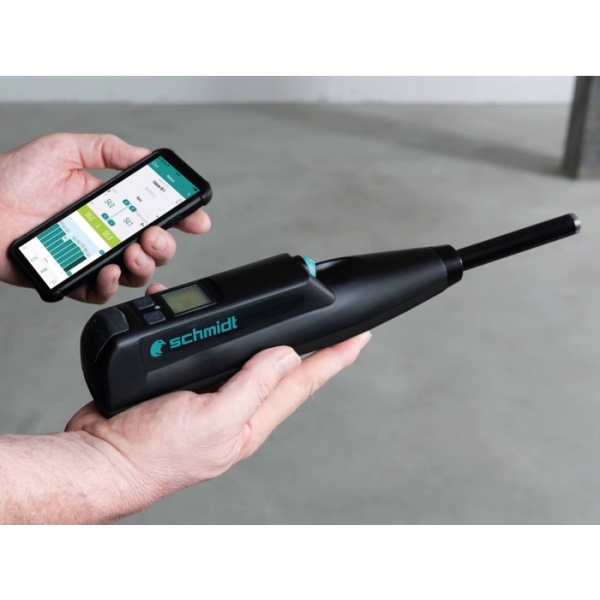

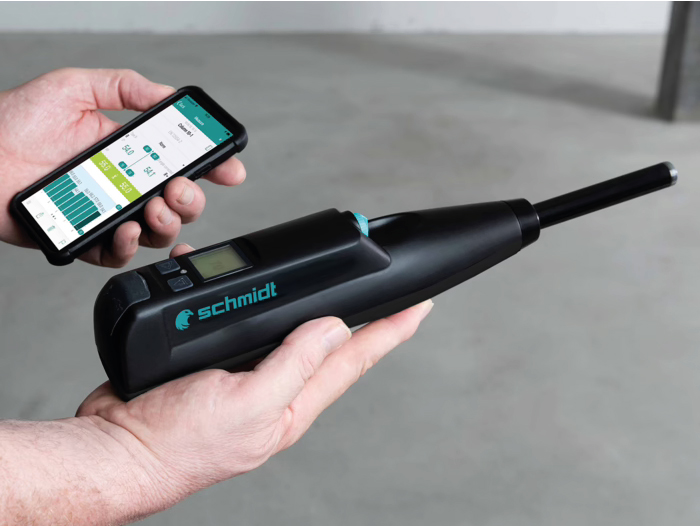

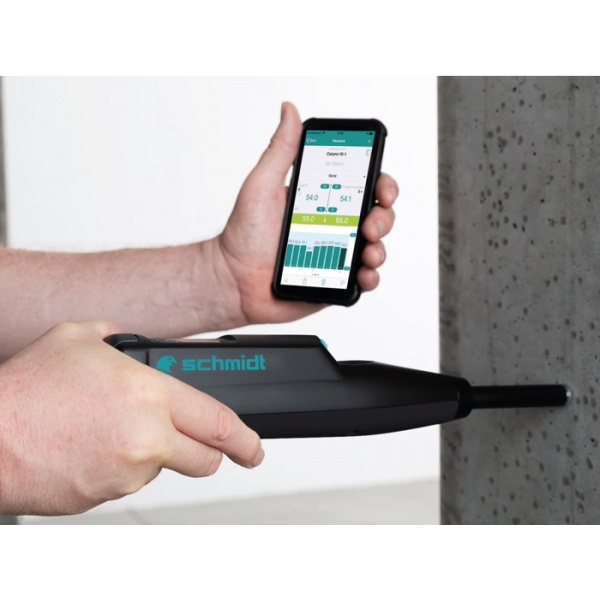

Instant report generation on the go
Best-in-class strength correlation
Fully assess an entire test region in less than 10 minutes

Applications:
Estimation of compressive strength of concrete / Mapping of concrete uniformity / Estimation of compressive strength of high strength concrete / Control of concrete curing for formwork removal

Technical Specifications:

Model Number	OS8200
Instrument Firmware	Automatic calculation of rebound value according to international standards
Display	Analog & backlit digital (100 x 100 pixels, graphic)
Impact Energy	2.207 Nm (N), 0.735 Nm (L)
Compressive Strength Range	10 to >100 N/mm2 (1,450 to>14,500 psi) L-Hammer with optional mushroom plunger: 5 to 10 MPa (725 to 1,450 psi)
Memory	Instrument memory > 20,000 impacts Display memory - Memory of iOS or Android device
Connections	Low energy Bluetooth®, USB for charging and updates
Measurements	Impact angle independent Displays the series on-screen as you work Series validity checked automatically Review an entire series Delete impacts
Battery	Standard AAA, alkaline or rechargeable
Battery Lifetime	> 20,000 impacts between charges
Operating Temperature	0° to 50°C
Languages	English, German, Japanese, Chinese, Korean, Spanish, Portuguese, Italian, French, Russian
