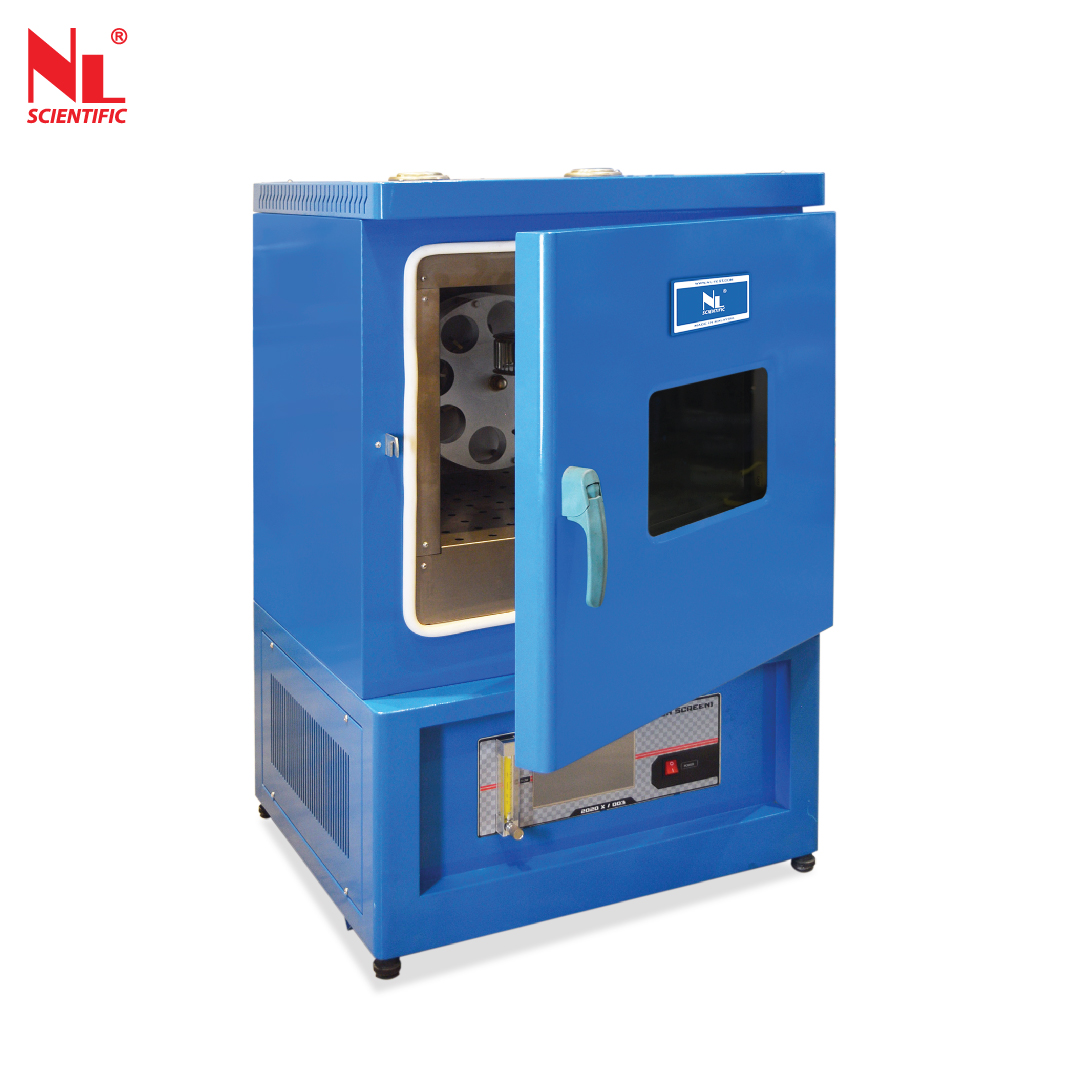

Rolling Thin-Film Oven (Touch Screen)
NL 2020 X / 003

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: ASTM D2872, AASTHO T240

RTFOT Method

Used for measuring the effect of heat and air on a moving firm of semisolid bituminous material.

Technical Specifications:

Model Number	NL 2020 X / 003
Working Temperature	163°C
Disc Rotation Speed	15 r.p.m.
Product Dimension (mm)	720 (L) x 720 (W) x 1120 (H) mm
Packing Dimension (mm)	820 (L) x 820 (W) x 1220 (H) mm
Approx. Product Weight	121 kg
Approx. Packing Weight	151 kg
Power	220~240 V, 3500 W, 1 Ph, 50 / 60 Hz

*1 Copy of Manual Instruction
